Event Routing & Data History

Stream digital twin changes to external systems in real-time and archive complete history for temporal analysis.

Overview

Event Routing in Konnektr Graph captures every change to your digital twin graph and routes those changes to external systems. This enables you to build:

• Reactive automation - Trigger workflows when specific conditions occur
• Real-time monitoring - Stream changes to dashboards and alerting systems
• Data pipelines - Feed graph mutations to analytics platforms
• Historical analysis - Archive complete timeline for temporal queries
• Audit logging - Maintain compliance with perfect record-keeping
• AI agent triggers - Notify agents when relevant state changes occur

Key Concepts

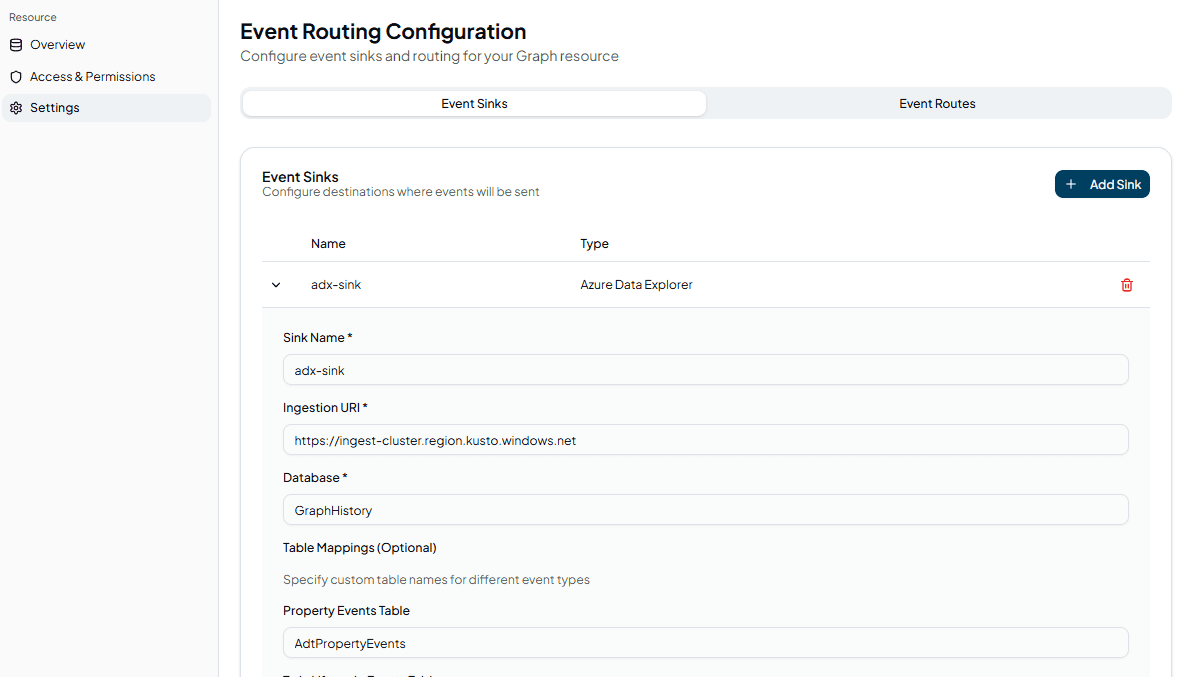

Event Sinks define where events should be sent (Kafka broker, MQTT broker, webhook endpoint, NATS server, Azure Data Explorer cluster, etc.). You configure connection details and authentication for each sink.

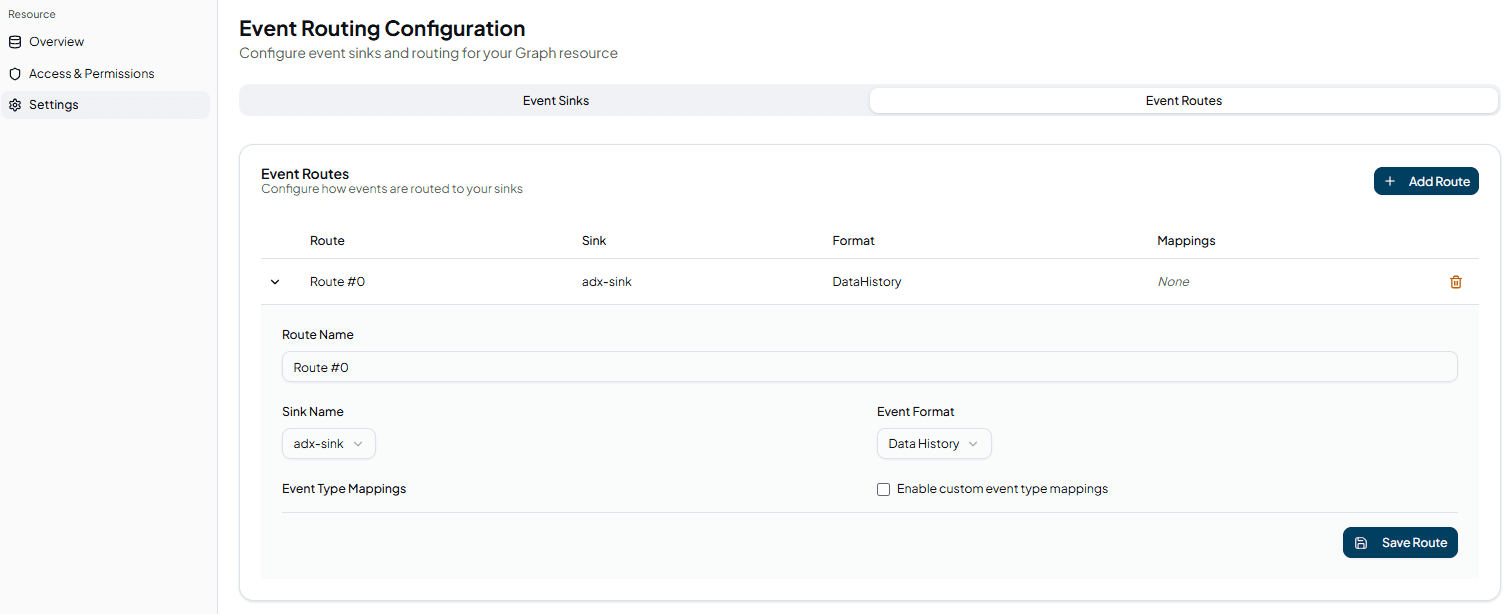

Event Routes define which events flow to which sinks. You can have multiple routes pointing to the same sink, allowing you to route different event types or formats to the same destination.

Event Formats determine the structure of emitted events:

• EventNotification - Full CloudEvents format with complete details (real-time monitoring, automation)
• DataHistory - Optimized format for time-series storage (historical analysis, compliance)

Event Types

Konnektr Graph emits events for all graph mutations:

Supported Destinations

Kafka / Azure Event Hubs / Fabric Event Streams

Stream events to any Kafka-compatible endpoint including Apache Kafka, Azure Event Hubs, or Microsoft Fabric Event Streams.

Common use cases:

• Stream to data lakes (Databricks, Snowflake)
• Feed real-time analytics (Flink, Spark Streaming)
• Integrate with microservices architecture
• Custom storage and processing pipelines

Azure Data Explorer (Kusto) / Fabric Real-Time Intelligence

Archive events to Azure Data Explorer or Microsoft Fabric Real-Time Intelligence for time-series analytics, historical queries, and compliance.

Common use cases:

• Complete data history with temporal queries
• Reconstruct graph state at any point in time
• Compliance and audit logging
• Trend analysis and pattern detection

See Data History with Azure Data Explorer for detailed guide.

PostgreSQL / TimescaleDB

Archive events to PostgreSQL or TimescaleDB for time-series analytics, historical queries, and compliance using SQL you already run. History tables use snake_case names and native PostgreSQL types, and can live in the graph database itself or in a separate one.

Common use cases:

• Complete data history with temporal SQL queries
• Reconstruct graph state at any point in time
• Compliance and audit logging
• TimescaleDB compression, retention policies, and continuous aggregates

See Data History with PostgreSQL / TimescaleDB for detailed guide.

MQTT

Publish events to MQTT brokers for IoT platform integration and edge systems.

Common use cases:

• Edge device synchronization
• IoT platform integration (AWS IoT Core, Azure IoT Hub)
• Pub/sub messaging for distributed systems

Webhooks

Send HTTP POST requests to any endpoint for flexible integration.

Common use cases:

• Trigger serverless functions (Azure Functions, AWS Lambda)
• Send notifications (Slack, Teams, PagerDuty)
• Custom business logic and automation
• CI/CD pipeline triggers

NATS

Publish events to NATS — a high-performance cloud-native messaging system. Supports both core NATS pub/sub and JetStream for durable, at-least-once delivery.

Common use cases:

• Cloud-native microservices communication
• Event-driven architectures requiring high throughput and low latency
• Durable event streaming with JetStream
• Edge and IoT deployments with lightweight footprint

The NATS sink supports multiple authentication methods: token-based, username/password, and OAuth 2.0 (token exchange). Events can be published in CloudEvents binary content mode (default) or structured content mode.

See the NATS Event Sink reference for full configuration details.

Configuration

Helm Values

Configure event routing in your Helm chart values.yaml:

events:
  enabled: true
  config:
    # Define event sinks
    eventSinks:
      kafka:
        - name: KafkaSink1
          brokerList: "kafka.example.com:9092"
          topic: "graph-events"
          saslMechanism: "PLAIN"  # or OAUTHBEARER
          saslPassword:
            valueFrom:
              secretKeyRef:
                name: kafka-credentials
                key: password

      kusto:
        - name: AdxSink1
          ingestionUri: "https://ingest-cluster.region.kusto.windows.net"
          database: "GraphHistory"
          clientId:
            valueFrom:
              secretKeyRef:
                name: azure-sp-credentials
                key: clientId
          clientSecret:
            valueFrom:
              secretKeyRef:
                name: azure-sp-credentials
                key: clientSecret
          tenantId:
            valueFrom:
              secretKeyRef:
                name: azure-sp-credentials
                key: tenantId

      postgres:
        - name: PostgresDataHistory
          connectionString:
            valueFrom:
              secretKeyRef:
                name: postgres-history
                key: connectionString
          # Optional: schema and table name overrides (defaults: public / adt_*_events)
          # schema: public
          # propertyEventsTable: adt_property_events

      mqtt:
        - name: MqttBroker1
          broker: "mqtt.example.com"
          port: 8883
          topic: "graph/events"
          username:
            valueFrom:
              secretKeyRef:
                name: mqtt-credentials
                key: username
          password:
            valueFrom:
              secretKeyRef:
                name: mqtt-credentials
                key: password

      webhook:
        - name: WebhookEndpoint1
          url: "https://api.example.com/events"
          authenticationType: "Bearer"
          bearerToken:
            valueFrom:
              secretKeyRef:
                name: webhook-credentials
                key: token

      nats:
        - name: NatsSink1
          url: "nats://nats-cluster:4222"
          subject: "graph.events"
          jetStream: true
          streamName: "graph-events"
          useBinaryMode: true
          # Optional: username/password or token auth
          # username:
          #   valueFrom:
          #     secretKeyRef:
          #       name: nats-credentials
          #       key: username
          # password:
          #   valueFrom:
          #     secretKeyRef:
          #       name: nats-credentials
          #       key: password

    # Define event routes
    eventRoutes:
      - sinkName: KafkaSink1
        eventFormat: EventNotification  # Real-time events
      - sinkName: AdxSink1
        eventFormat: DataHistory        # Historical archive
      - sinkName: PostgresDataHistory
        eventFormat: DataHistory        # SQL-queryable history
      - sinkName: MqttBroker1
        eventFormat: EventNotification
      - sinkName: WebhookEndpoint1
        eventFormat: EventNotification
      - sinkName: NatsSink1
        eventFormat: EventNotification

Apply configuration:

helm upgrade graph oci://ghcr.io/konnektr-io/charts/graph -n graph -f values.yaml

Event Formats

EventNotification Format

Full CloudEvents 1.0 format with complete event details. Use for real-time monitoring, automation, and general-purpose event streaming.

Example Twin.Update event:

{
  "specversion": "1.0",
  "type": "Konnektr.Graph.Twin.Update",
  "source": "https://graph.example.com",
  "id": "550e8400-e29b-41d4-a716-446655440000",
  "time": "2025-01-20T10:30:00Z",
  "subject": "sensor-temp-01",
  "datacontenttype": "application/json",
  "data": {
    "modelId": "dtmi:com:example:Sensor;1",
    "patch": [
      {"op": "replace", "path": "/temperature", "value": 72.5}
    ]
  }
}

CloudEvents Attributes:

DataHistory Format

Optimized flat format for time-series storage and historical analysis. Designed for efficient querying in analytics databases.

Example property update record:

{
  "TimeStamp": "2025-01-20T10:30:00Z",
  "ServiceId": "graph.example.com",
  "Id": "sensor-temp-01",
  "ModelId": "dtmi:com:example:Sensor;1",
  "Key": "temperature",
  "Value": 72.5,
  "RelationshipId": "",
  "RelationshipTarget": ""
}

This format is optimized for:

• Time-series databases (InfluxDB, TimescaleDB)
• Analytics platforms (Azure Data Explorer, ClickHouse)
• Columnar storage (Parquet files, data lakes)

Security & Authentication

Kafka Authentication

SASL/PLAIN:

eventSinks:
  kafka:
    - name: SecureKafka
      brokerList: "kafka.example.com:9092"
      topic: "events"
      saslMechanism: "PLAIN"
      # saslUsername and saslPassword via secrets

SASL/OAUTHBEARER (Generic OAuth 2.0):

eventSinks:
  kafka:
    - name: OAuthKafka
      brokerList: "kafka.example.com:9092"
      topic: "events"
      saslMechanism: "OAUTHBEARER"
      oauthTokenEndpoint: "https://auth.example.com/oauth/token"
      oauthScope: "kafka.produce"
      # oauthClientId and oauthClientSecret via secrets

Azure Data Explorer Authentication

Service Principal (Recommended):

eventSinks:
  kusto:
    - name: AdxSink
      ingestionUri: "https://ingest-cluster.region.kusto.windows.net"
      database: "GraphHistory"
      # clientId, clientSecret, tenantId via secrets

Required Azure role: Database Ingestor on target database.

Grant via Azure CLI:

az kusto database principal-assignment create \
  --cluster-name <cluster-name> \
  --database-name <database-name> \
  --principal-id <service-principal-app-id> \
  --principal-type App \
  --role "Database Ingestor"

MQTT Authentication

eventSinks:
  mqtt:
    - name: SecureMqtt
      broker: "mqtt.example.com"
      port: 8883
      topic: "graph/events"
      # username and password via secrets

Webhook Authentication

Bearer Token:

eventSinks:
  webhook:
    - name: BearerWebhook
      url: "https://api.example.com/events"
      authenticationType: "Bearer"
      # bearerToken via secrets

Basic Authentication:

eventSinks:
  webhook:
    - name: BasicWebhook
      url: "https://api.example.com/events"
      authenticationType: "Basic"
      # username and password via secrets

API Key:

eventSinks:
  webhook:
    - name: ApiKeyWebhook
      url: "https://api.example.com/events"
      authenticationType: "ApiKey"
      apiKeyHeader: "X-API-Key"
      # apiKey via secrets

OAuth 2.0 Client Credentials:

eventSinks:
  webhook:
    - name: OAuthWebhook
      url: "https://api.example.com/events"
      authenticationType: "OAuth"
      oauthTokenEndpoint: "https://auth.example.com/oauth/token"
      oauthScope: "api.write"
      # oauthClientId and oauthClientSecret via secrets

Injecting Secrets Securely

Always inject credentials from Kubernetes secrets:

# Create secret
kubectl create secret generic kafka-credentials \
  --from-literal=username='kafka-user' \
  --from-literal=password='your-password'

# Reference in Helm
extraEnv:
  - name: EventSinks__Kafka__0__SaslUsername
    valueFrom:
      secretKeyRef:
        name: kafka-credentials
        key: username
  - name: EventSinks__Kafka__0__SaslPassword
    valueFrom:
      secretKeyRef:
        name: kafka-credentials
        key: password

The path format follows .NET configuration conventions:

• Pattern: EventSinks__<SinkType>__<Index>__<Property>
• Example: EventSinks__Kafka__0__SaslPassword for first Kafka sink

Common Patterns

Pattern: Real-Time Monitoring + Historical Archive

Route the same events to multiple destinations with different formats:

eventRoutes:
  # Real-time dashboard updates
  - sinkName: KafkaSink
    eventFormat: EventNotification

  # Historical archive for compliance
  - sinkName: AdxSink
    eventFormat: DataHistory

Pattern: Automation Trigger

Trigger workflow when specific events occur:

eventRoutes:
  - sinkName: WebhookSink
    eventFormat: EventNotification

Webhook endpoint evaluates event, checks conditions, triggers automation (e.g., Azure Logic App, AWS Step Functions, custom service).

Pattern: Custom Storage Backend

Send DataHistory events to Kafka, then process and store in your database:

eventRoutes:
  - sinkName: KafkaSink
    eventFormat: DataHistory

Kafka consumer reads events and writes to:

• PostgreSQL with TimescaleDB extension (time-series)
• InfluxDB (IoT telemetry focus)
• ClickHouse (high-performance analytics)
• Parquet files in data lake (long-term archival)

Pattern: AI Agent Notification

Notify AI agents of relevant changes for immediate response:

eventRoutes:
  - sinkName: AgentWebhook
    eventFormat: EventNotification

Agent receives webhook, queries Graph for full context, takes action based on temporal patterns.

Pattern: Multi-Region Replication

Replicate events to secondary Graph instances for disaster recovery:

eventRoutes:
  - sinkName: KafkaDRRegion
    eventFormat: EventNotification

Consumer in DR region ingests events and updates secondary Graph instance.

Use Cases

Digital Twin Data History

Archive complete timeline of all digital twin changes for:

• Temporal queries - "What was the state at 3 AM last Tuesday?"
• Change analysis - "Which twins changed in the last 24 hours?"
• Root cause analysis - Reconstruct system state during incidents
• Trend detection - Identify patterns over time

See Data History with Azure Data Explorer for complete guide with query examples, or Data History with PostgreSQL / TimescaleDB when your history lives in PostgreSQL.

Compliance & Audit Trails

Maintain perfect record of all changes for regulated industries:

• Immutable event log with complete history
• Query "who changed what, when" across entire graph
• Export audit trails for regulatory reporting
• Prove compliance by reconstructing historical state

Reactive Automation

Build event-driven systems that respond to graph changes:

• Trigger maintenance workflows when thresholds exceeded
• Send alerts when critical relationships deleted
• Update external systems when twins created/modified
• Orchestrate complex workflows based on graph state

Real-Time Monitoring

Stream changes to dashboards and monitoring systems:

• Live updates of asset status
• Real-time relationship visualization
• Alerting on anomalous changes
• Operational intelligence dashboards

AI Agent Memory

Give AI agents perfect memory of historical patterns:

• "Has this anomaly occurred before?"
• "What changed since you last checked?"
• "Show me the pattern of changes over the last week"
• Temporal reasoning for intelligent decision-making

Troubleshooting

Events Not Flowing

Check sink configuration:

• Verify connection details (URLs, ports, topics)
• Confirm authentication credentials are correct
• Test connectivity from your network to destination

Verify routes are active:

• Check that routes are enabled in settings
• Confirm sink name in route matches configured sink

Review logs:

kubectl logs <graph-pod> | grep "EventRouting"

Authentication Failures

Check the injected configuration:

# Verify secret exists
kubectl get secret <secret-name>

# Check environment variable injection
kubectl describe pod <graph-pod> | grep EventSinks

For Azure Data Explorer:

# Verify service principal permissions
az kusto database principal-assignment list \
  --cluster-name <cluster> \
  --database-name <database>

High Latency

Check destination capacity:

• Kafka: Verify partition count and consumer capacity
• Webhooks: Check endpoint response times
• MQTT: Verify broker capacity

For Azure Data Explorer:

• Consider switching ingestion policies (see Kusto guide)
• Review cluster capacity and scaling

Network issues:

• Verify network path between Graph and destination
• Check for firewall rules or network policies blocking traffic

Next Steps

• Data History with Azure Data Explorer - Complete guide with temporal queries
• Data History with PostgreSQL / TimescaleDB - SQL-queryable history with hypertables
• Telemetry - Send custom telemetry messages
• Querying - Query your graph effectively
• Deployment Guide - Deploy Konnektr Graph
